High Current Handling: Rated for continuous operation at 125 Amps (approx. 85kW – 90kW at 415V).
-
Modular Design: The outgoing section is usually customizable, allowing for a mix of Single Phase (SP) and Three Phase (TP) breakers.
-
Robust Enclosure: Fabricated from CRCA (Cold Rolled Close Annealed) steel sheets with powder coating for corrosion resistance.
-
Busbar System: Uses high-conductivity Copper or Aluminum busbars rather than wires for the main power distribution, reducing heat and improving safety.
-
Metering & Monitoring: typically includes digital or analog meters (Ammeters, Voltmeters) and phase indication lights (R-Y-B).
LT DB PANEL

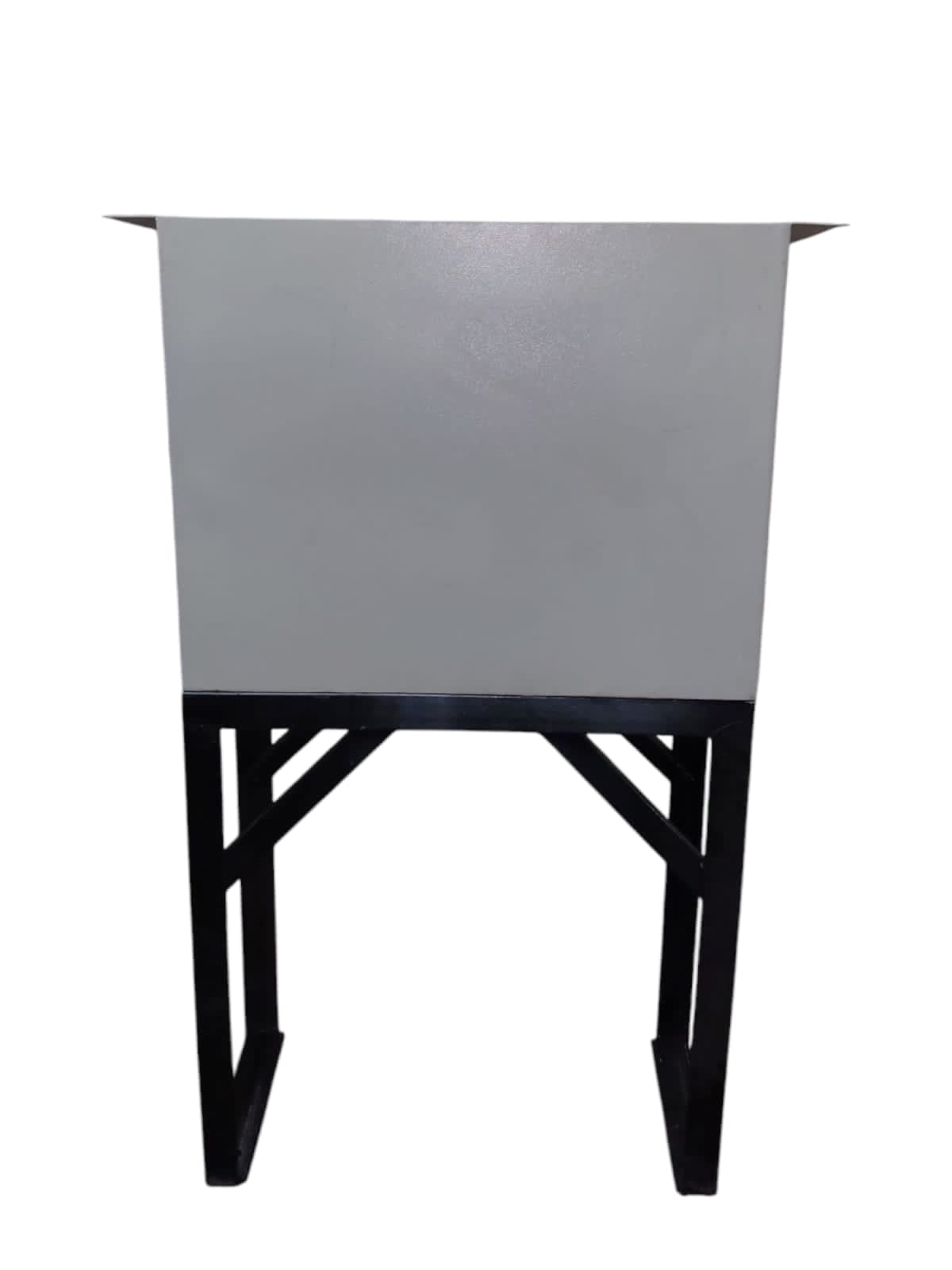

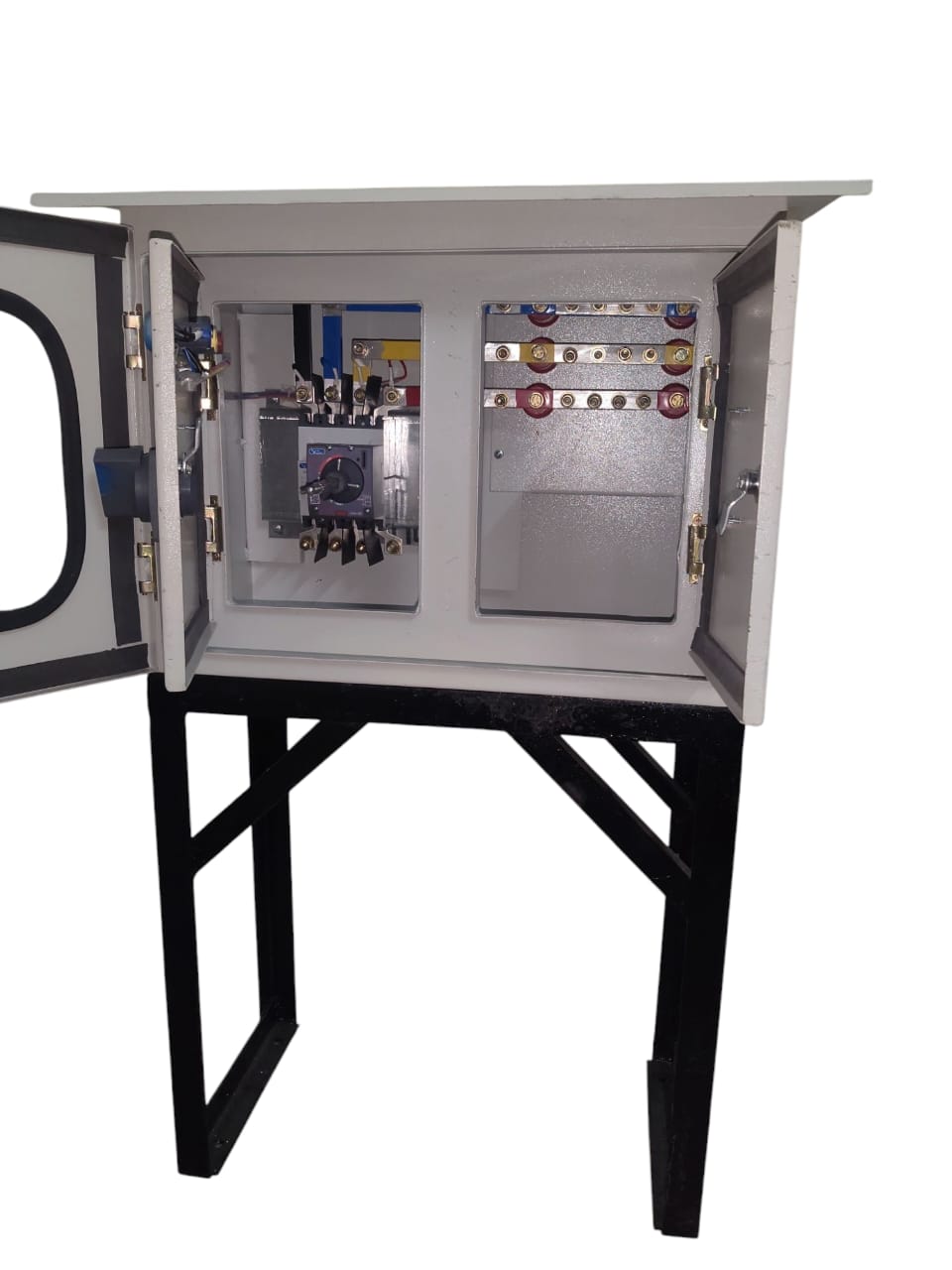

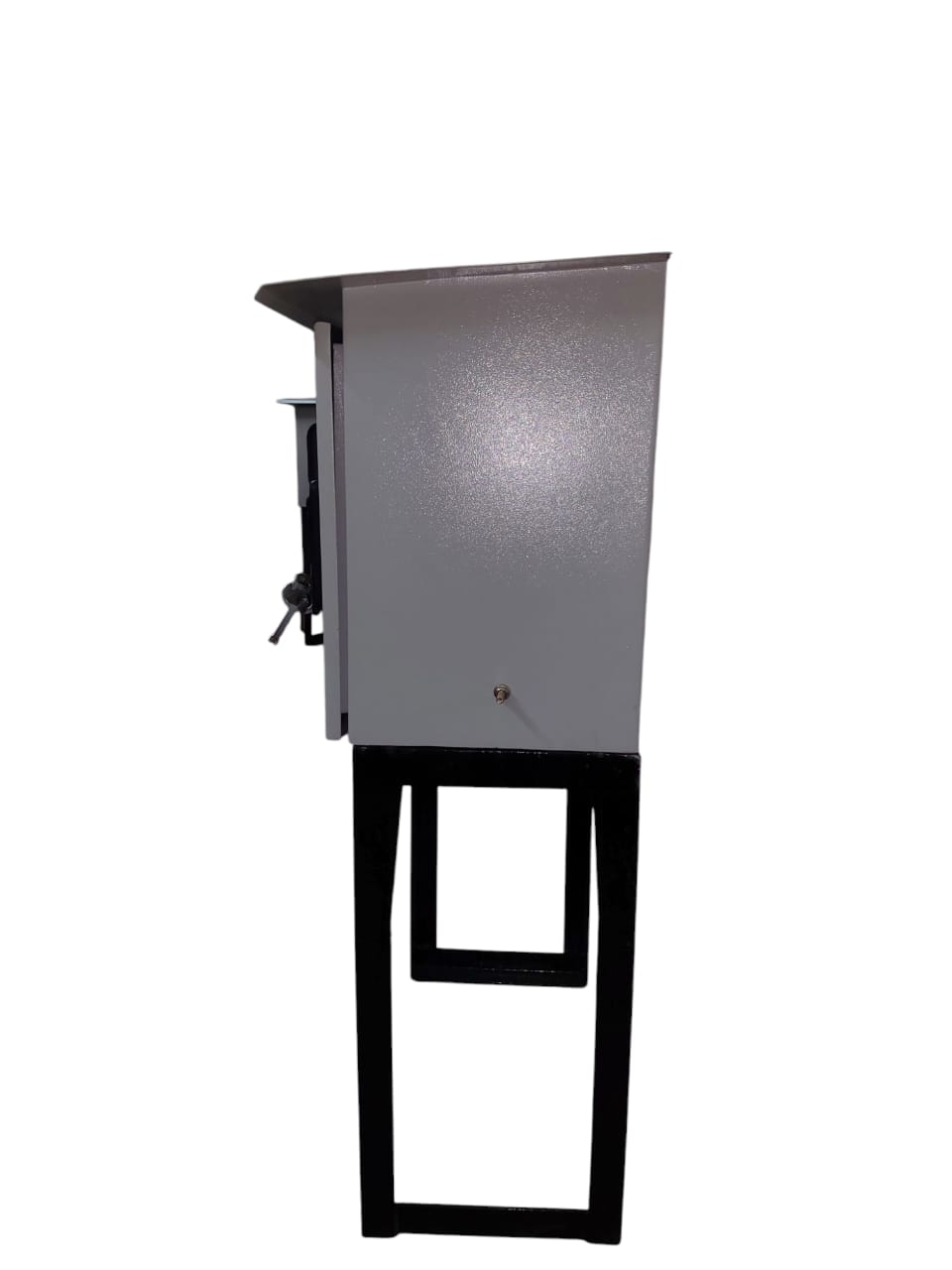

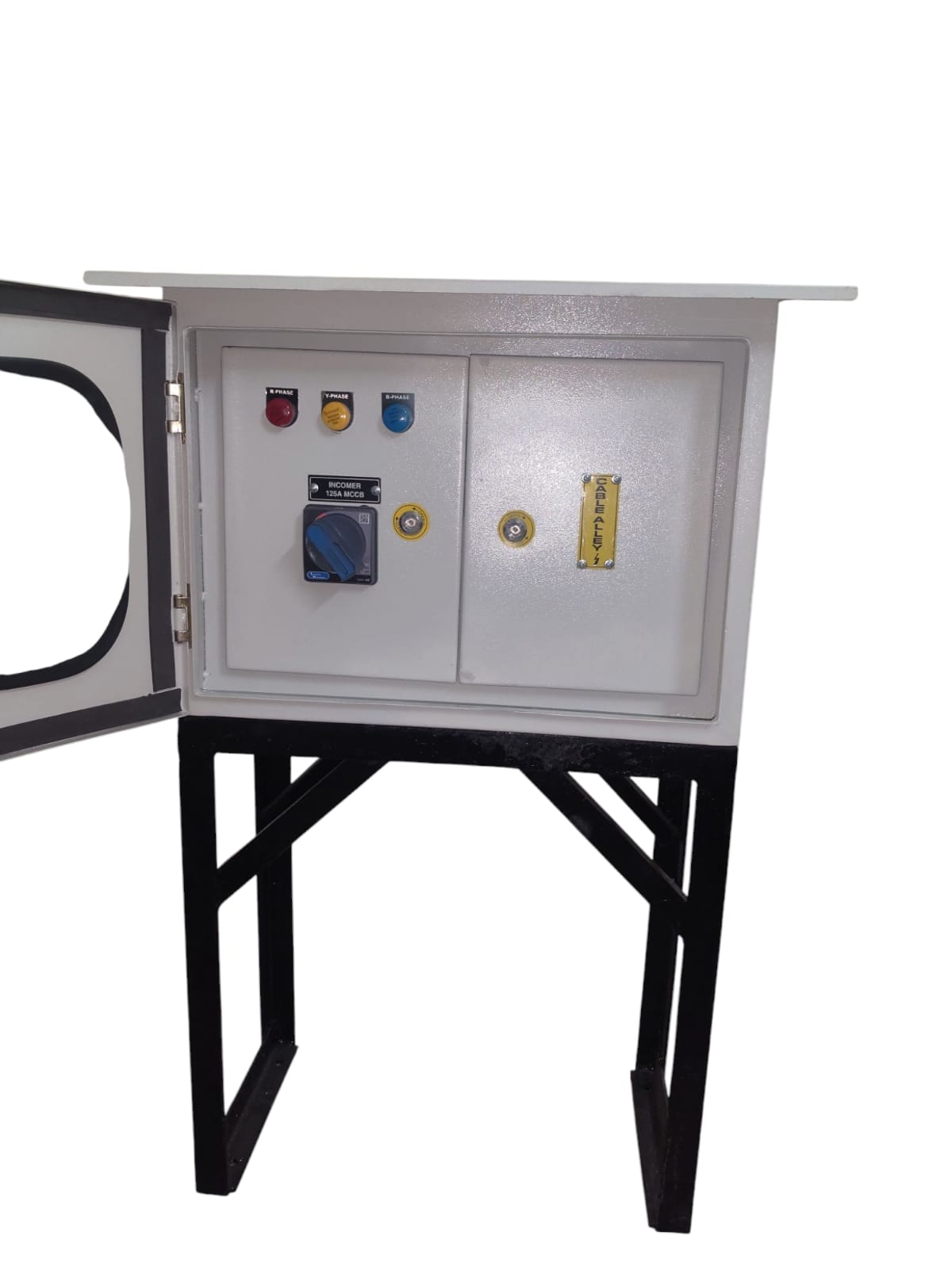

125A LT DISTRIBUTION PANEL
| Feature | Specification |
| Rated Current (In) | 125 Amps |
| Rated Voltage (Ue) | 415V AC (3-Phase + Neutral) |
| Frequency | 50 Hz / 60 Hz |
| Short Circuit Rating (Icc) | Typically 10kA to 25kA (depending on MCCB) |
| Ingress Protection | IP42 (Indoor) or IP54/IP65 (Outdoor/Industrial) |
| Incoming Device | 125A MCCB (Molded Case Circuit Breaker) or Switch Disconnector |
| Outgoing Devices | Mix of MCBs (10A-63A) or smaller MCCBs |
| Busbar Material | Electrolytic Grade Copper or Aluminum (E91E) |
| Enclosure Material | CRCA Steel (1.6mm or 2.0mm thickness) |
| Mounting | Wall Mounted or Floor Standing |
| Make | BRS TECHNO CORPORATION |
