IP44 Splash-Proof Rating: Protects against solid objects larger than 1mm (such as wires or screws) and water splashing from any direction.
-
Quick-Release Assembly: Designed for fast wiring and maintenance. Often features a simple twist-and-lock body mechanism for easy access to terminals.
-
Impact Resistant: Constructed from durable thermoplastic (Polyamide 6) to withstand drops, knocks, and dragging across workshop floors.
-
Secure Grip: The cable gland ensures strong strain relief, preventing the internal wires from being pulled out during use.
-
No Locking Ring: Unlike the IP67 version, this plug does not feature a screw-on locking ring, allowing for quicker connection and disconnection in fast-paced environments.
IP 44 RATING

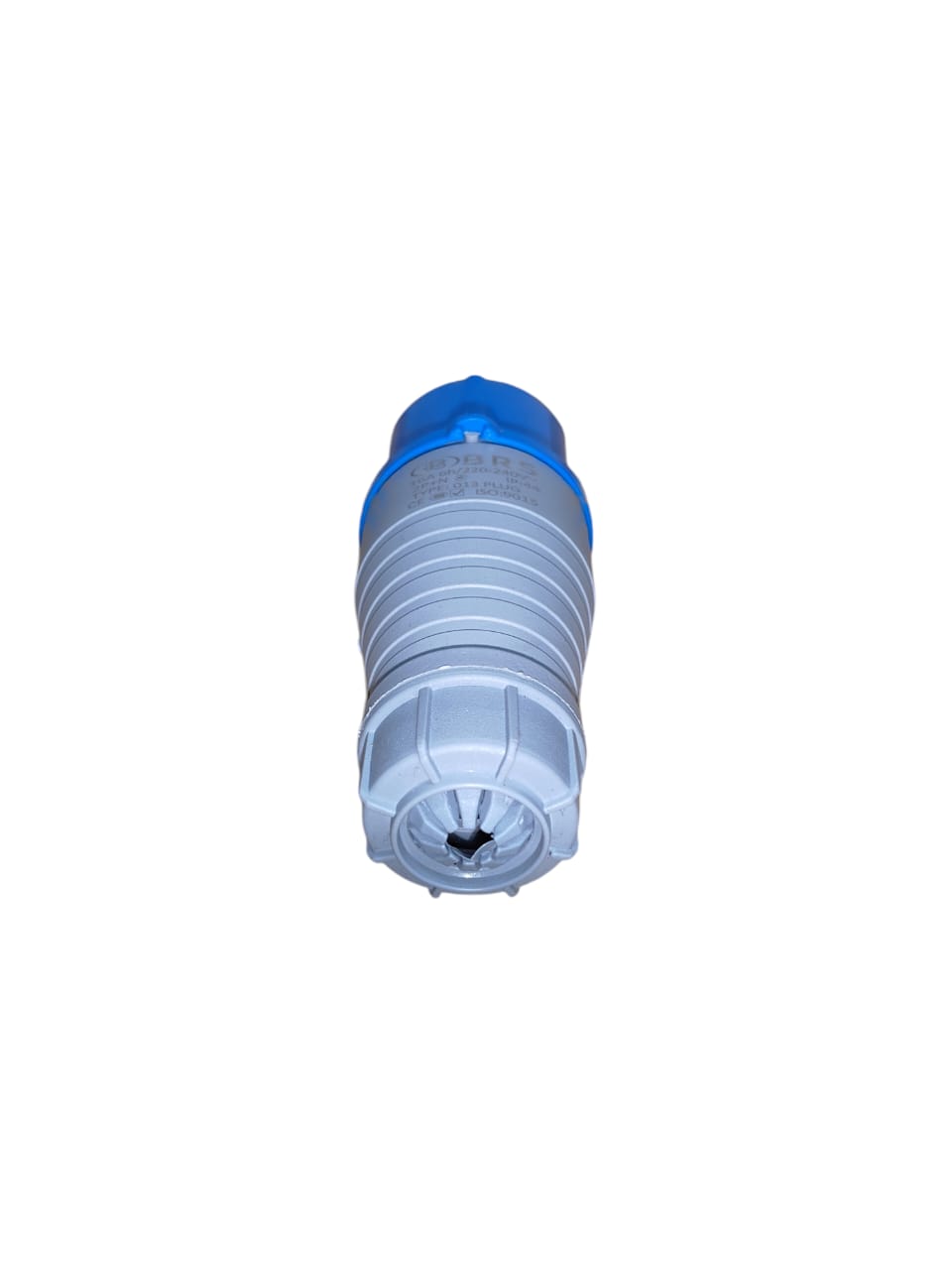

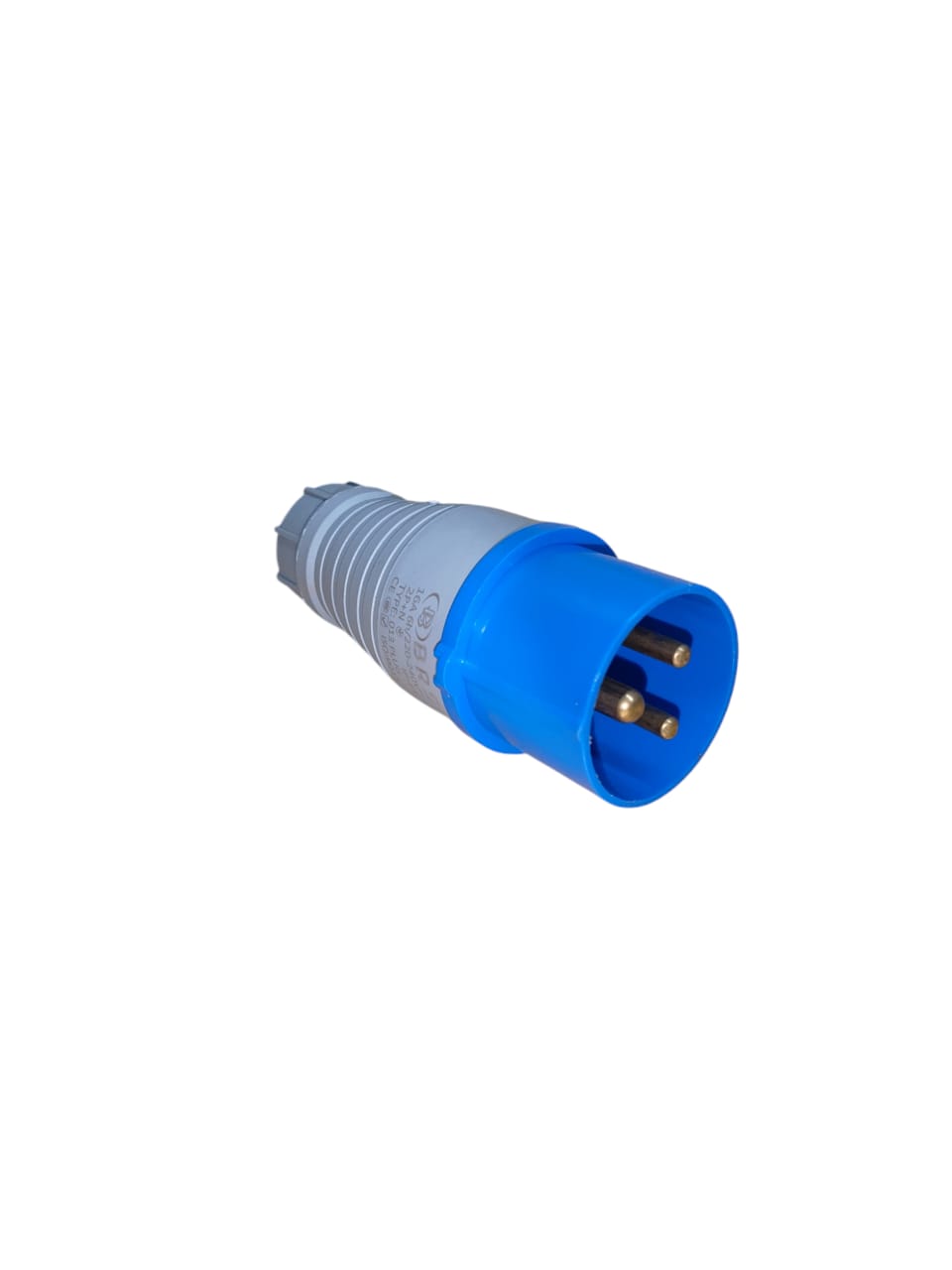

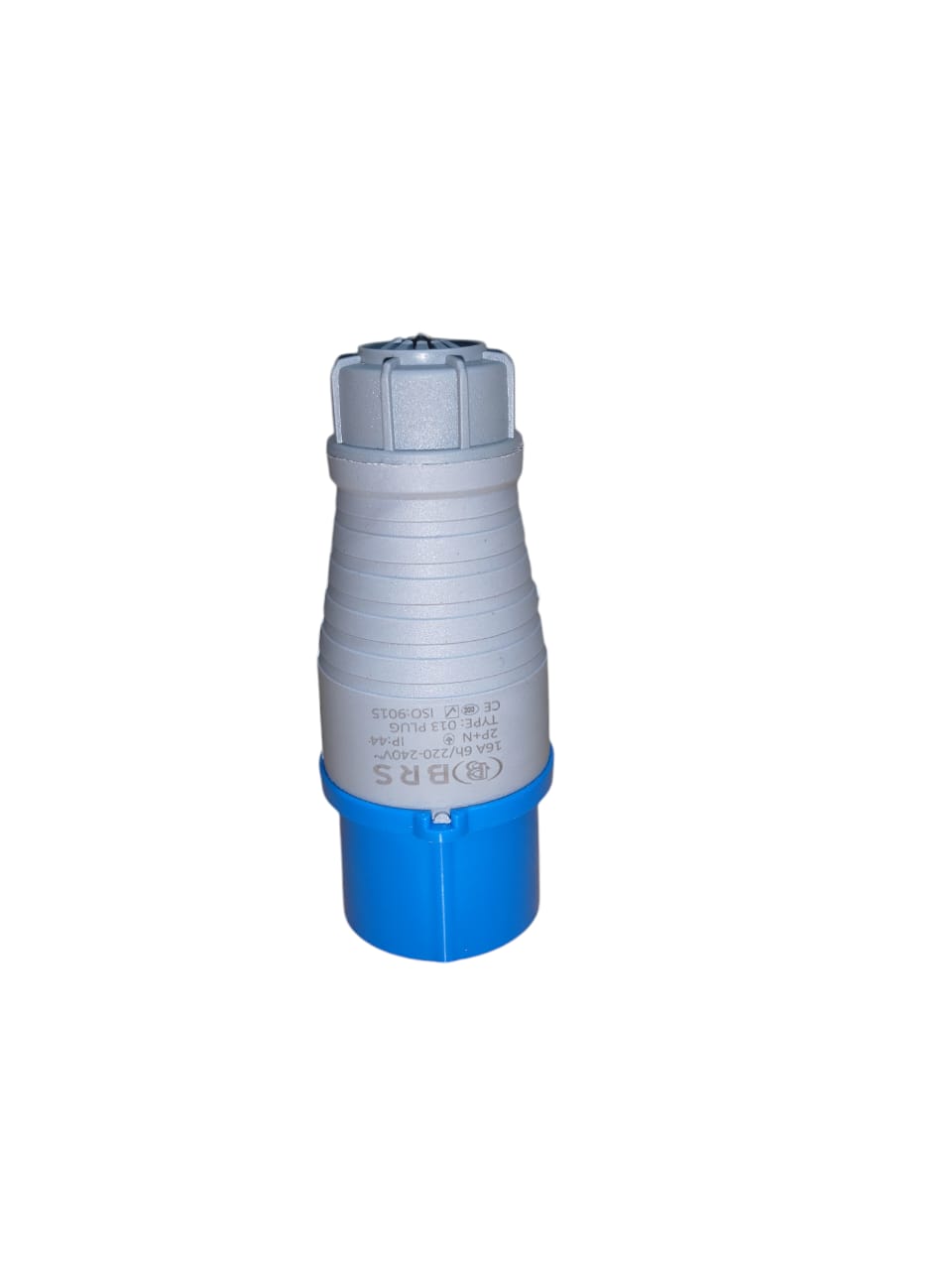

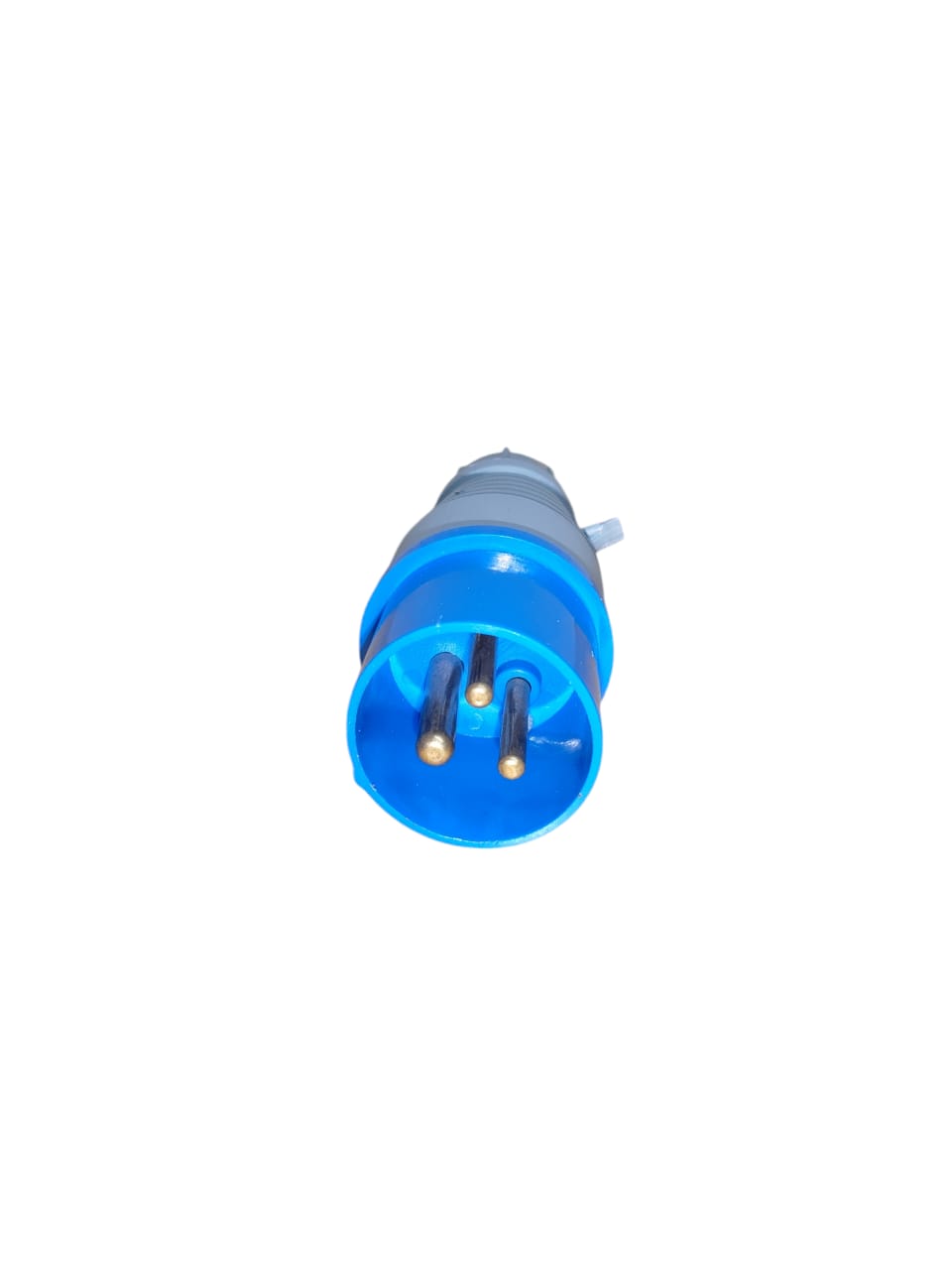

16A 3PIN INDUSTRIAL PLUG IP44
| Feature | Specification |
| Current Rating | 16 Amps |
| Pin Configuration | 3-Pin (2P + E) / (Live, Neutral, Earth) |
| Voltage Coding |
Blue: 200V – 250V AC (Standard Mains)
Yellow: 100V – 130V AC (Site Voltage) |
| Ingress Protection | IP44 (Splash-proof / Dust-protected) |
| Earth Position | 6h (Standard for Blue/230V) |
| Cable Entry | Flexible Gland or Clamp |
| Terminal Type | Screw Terminals (typically) |
| Wire Size | 1.0mm² to 2.5mm² |
| Standard Compliance | IEC 60309-1, IEC 60309-2, CE |
