IP67 Water & Dust Protection: Features a rugged compression gland at the cable entry and a twist-lock screw cap at the mating end. This creates a hermetic seal that prevents water ingress even during heavy rain, wash-downs, or temporary immersion.
-
High-Impact Housing: Manufactured from tough, self-extinguishing engineering thermoplastic (typically Polyamide 6) that offers high resistance to impact, abrasion, and chemicals.
-
Secure Connection: The screw-on locking ring ensures the plug cannot be accidentally pulled out of the socket, providing a vibration-proof connection.
-
Ergonomic Design: Ribbed grip area allows for easy handling and disconnection, even when wearing gloves or with wet hands.
-
Brass Contacts: High-grade brass pins ensure excellent electrical conductivity and corrosion resistance.
IP 67 RATING

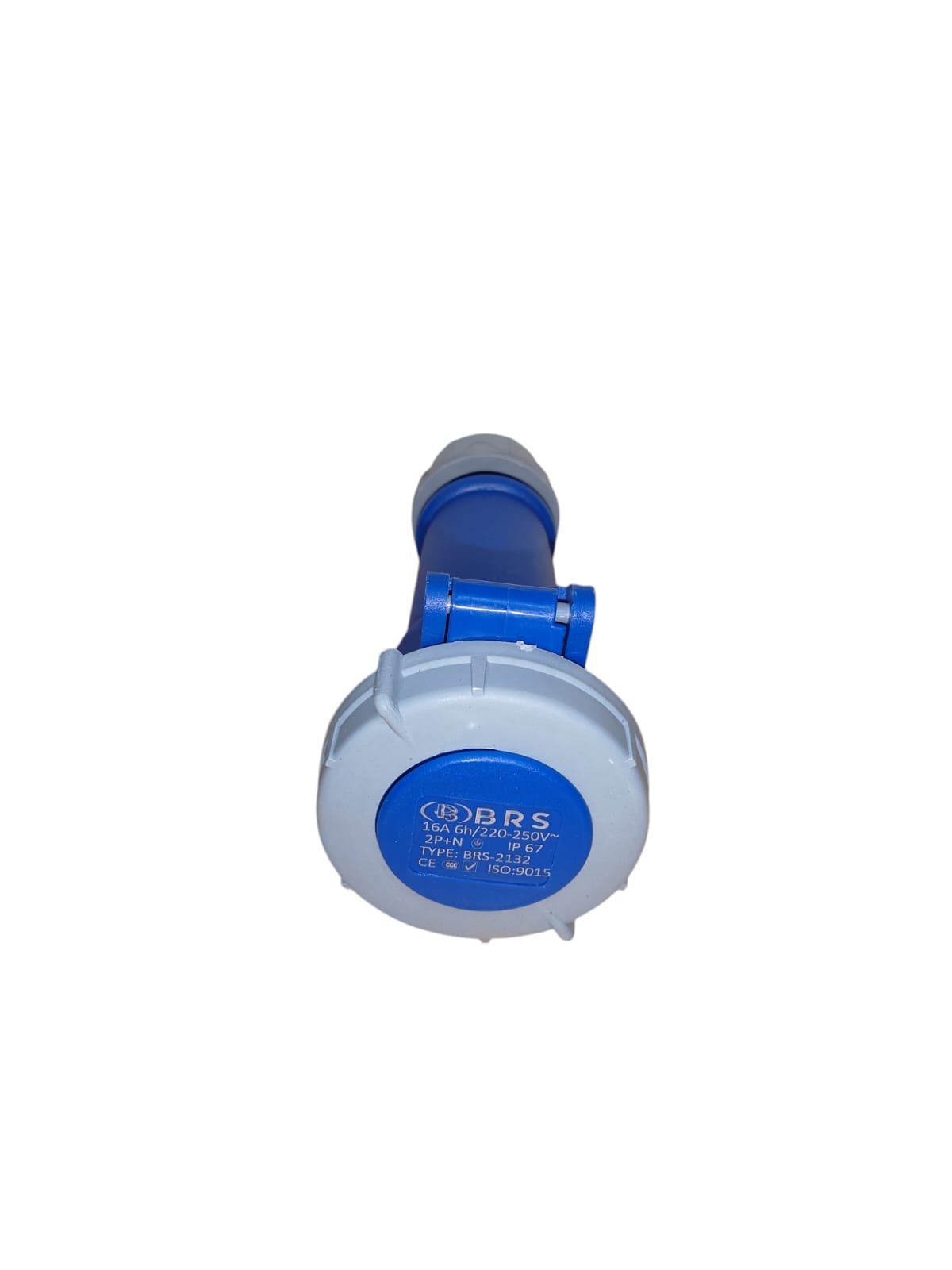

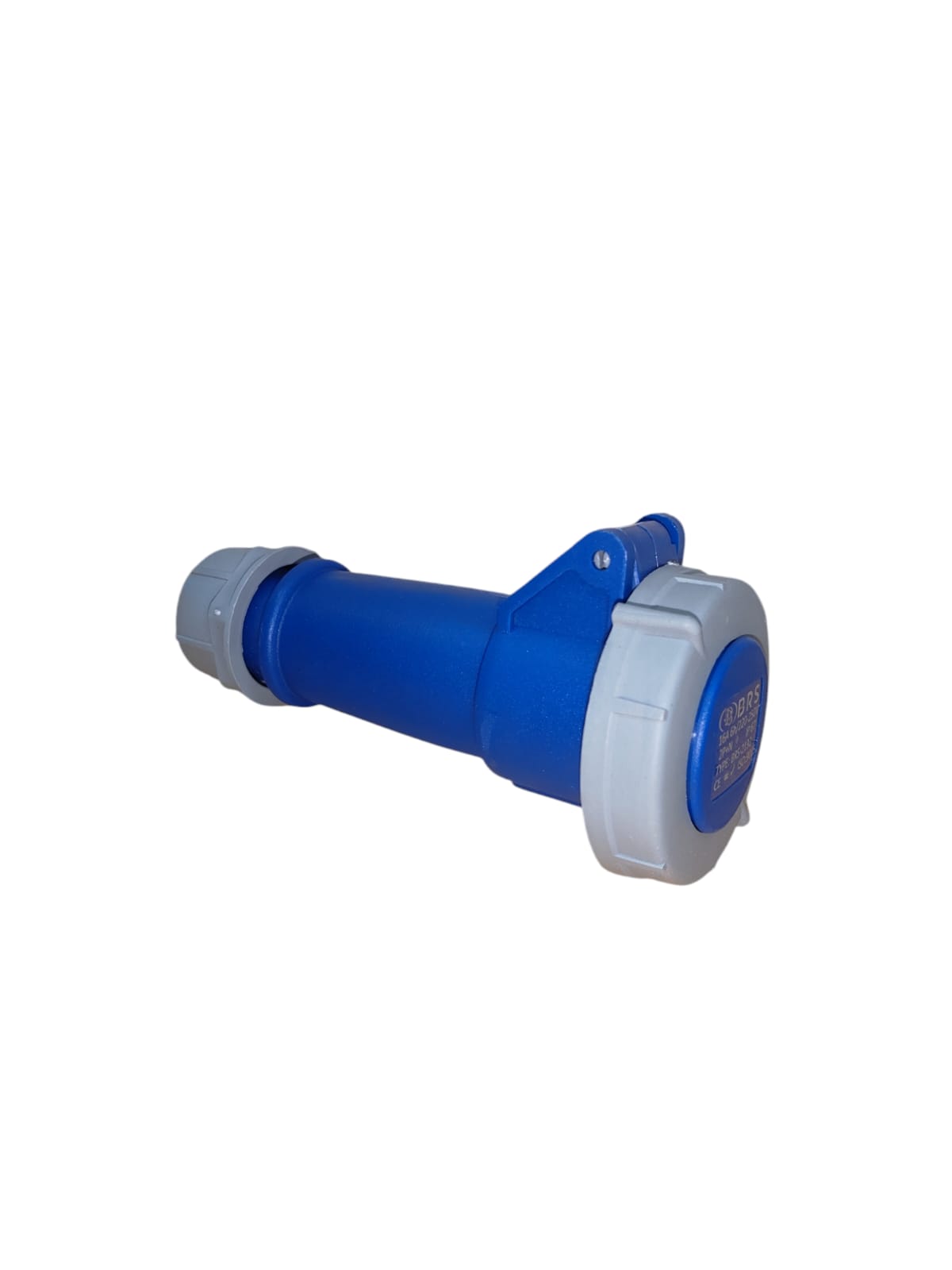

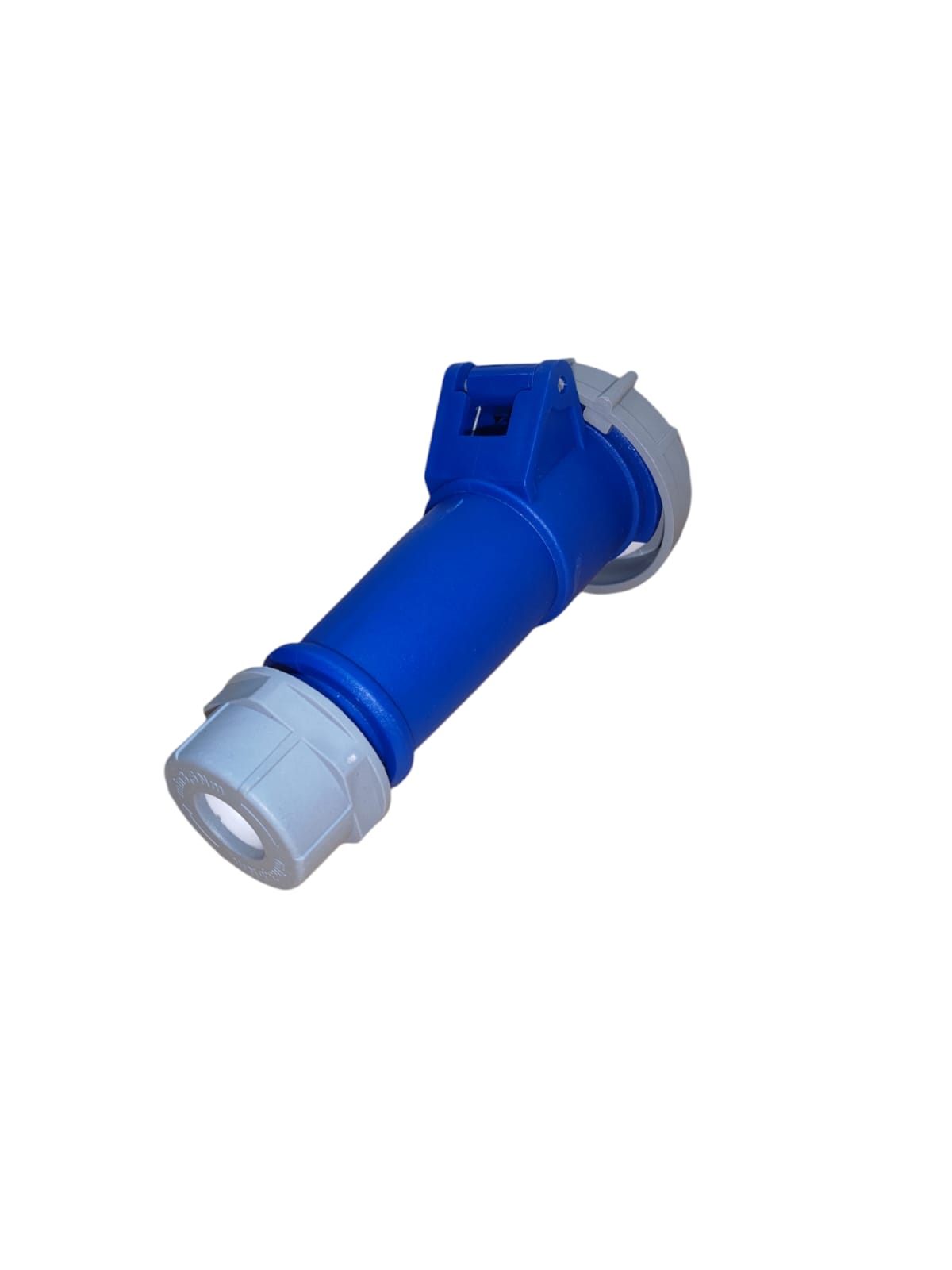

16A 3PIN INDUSTRIAL STRAIGHT SOCKET IP67
| Feature | Specification |
| Current Rating | 16 Amps |
| Pin Configuration | 3-Pin (2P + E) / (Live, Neutral, Earth) |
| Voltage |
Blue: 200V – 250V AC (Standard Mains)
Yellow: 100V – 130V AC (Site Voltage) |
| Frequency | 50/60 Hz |
| Ingress Protection | IP67 (Dust-tight, Waterproof up to 1m depth) |
| Earth Position | 6h (for Blue/230V) or 4h (for Yellow/110V) |
| Cable Entry | Compression Gland (Flexible membrane) |
| Wire Size Compatibility | 1.0mm² to 2.5mm² (Stranded or Solid) |
| Standard Compliance | IEC 60309-1, IEC 60309-2, CE, RoHS |
