| Feature | Specification |
| Input (Inlet) | 1x 3P+N+E – IP67 Rated |
| Input Voltage | 400V / 415V AC (3-Phase) |
| Output Sockets (10-Way) |
Common Mix: • 6x 16A 3-Pin (230V) – Blue • 4x 32A 5-Pin (400V) – Red (Custom configurations available) |
| Protection (Breakers) |

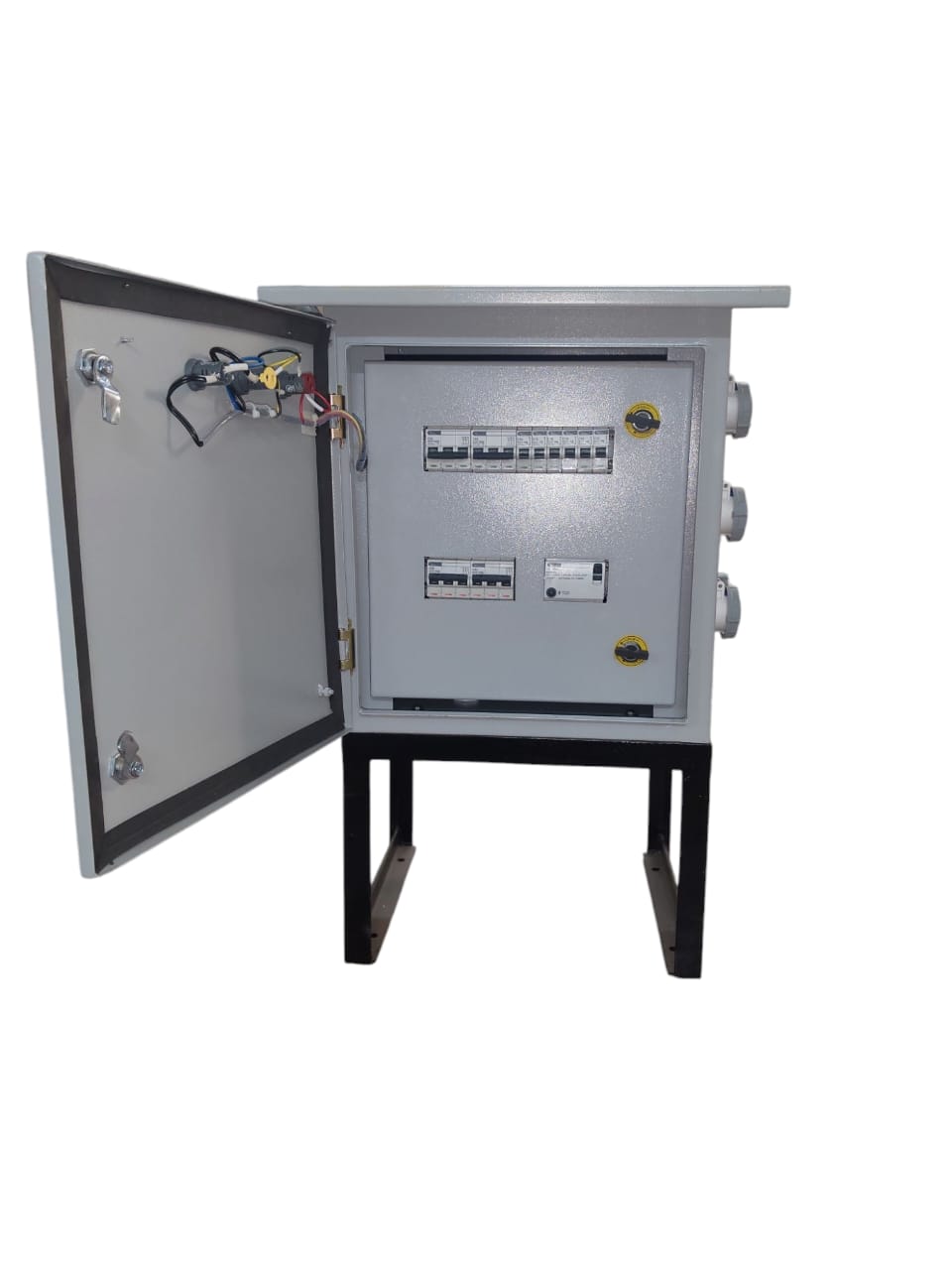

• Main: 63A 4-Pole 30mA RCCB • Outlets: Individual MCBs for each socket C16 SP or C32 TP type |
| Ingress Protection | IP44 (Standard) or IP67 (Waterproof/Outdoor) |
| Material | High-Density Steel |
| Dimensions | Approx. 500mm x 450mm x 375mm (varies by model) |
| Compliance | CE, RoHS |

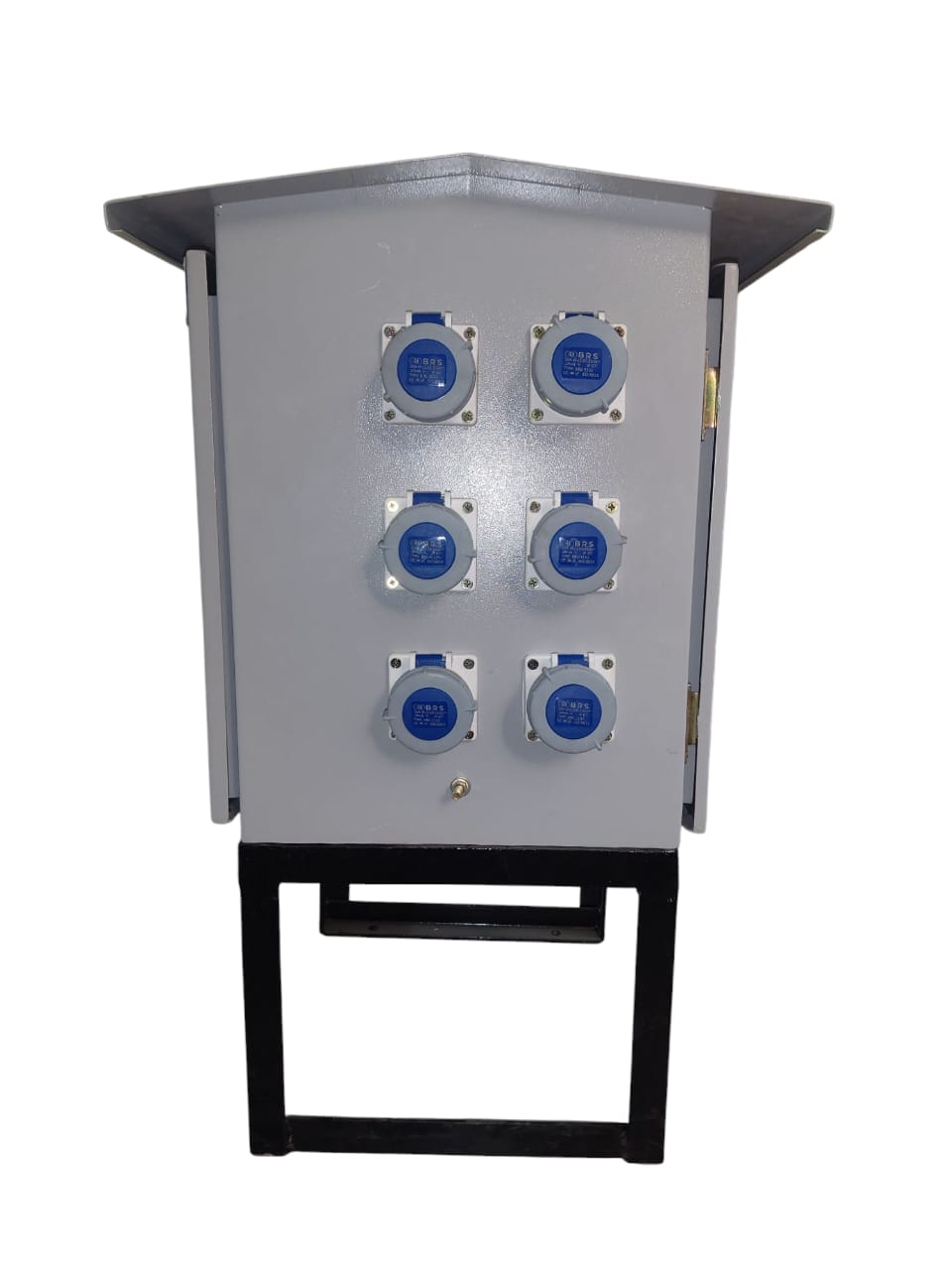

The 63A 10-Way Socket Distribution Panel (often referred to as a Power Distribution Box is a heavy-duty unit designed to manage temporary power distribution. It takes a high-current input (typically 63A 3-Phase) and splits it into multiple lower-current outlets 16A or 32A, each protected by individual circuit breakers.
This equipment is essential for safely powering multiple devices in industrial settings, construction sites, outdoor events, and film productions.
