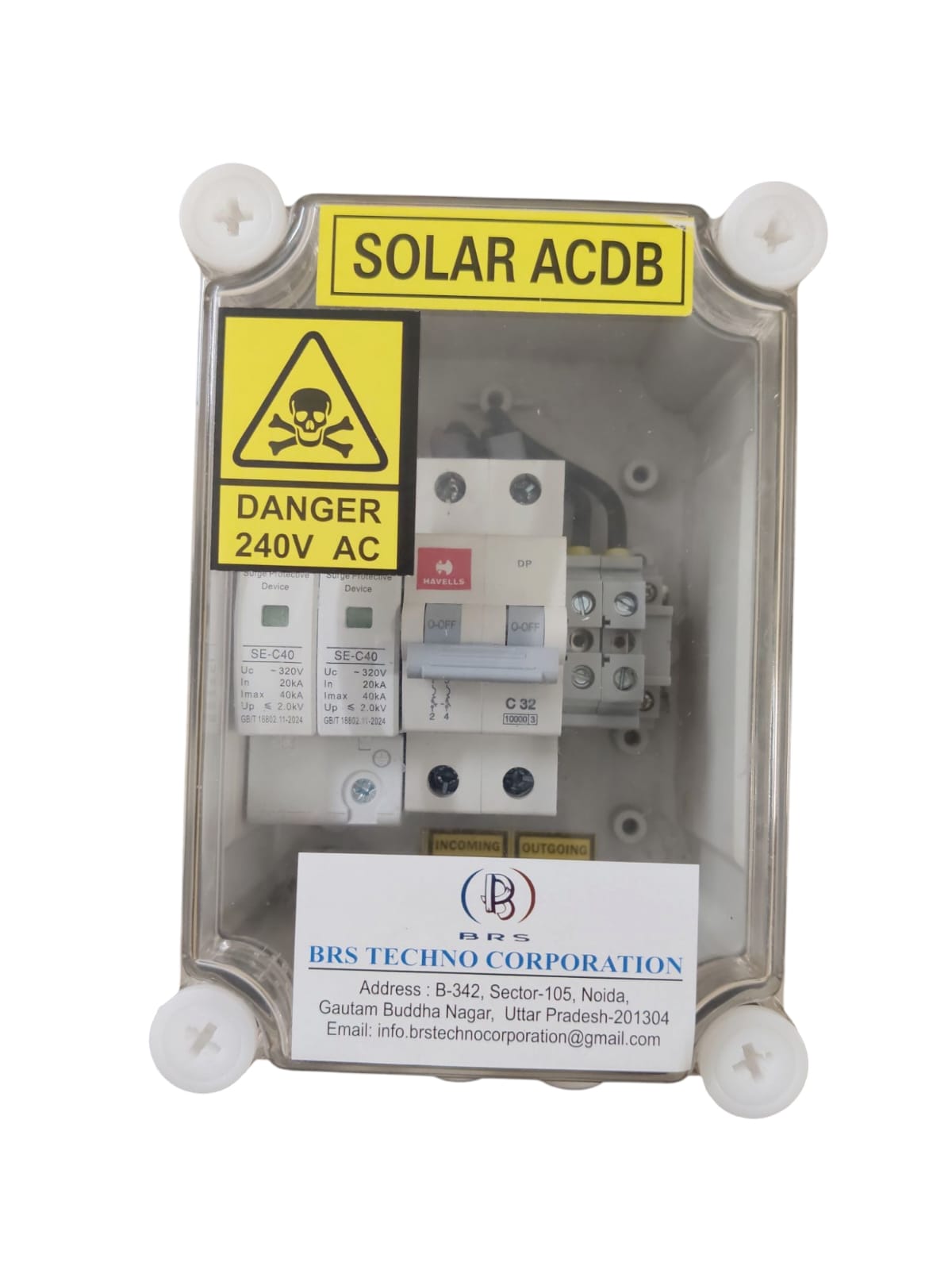

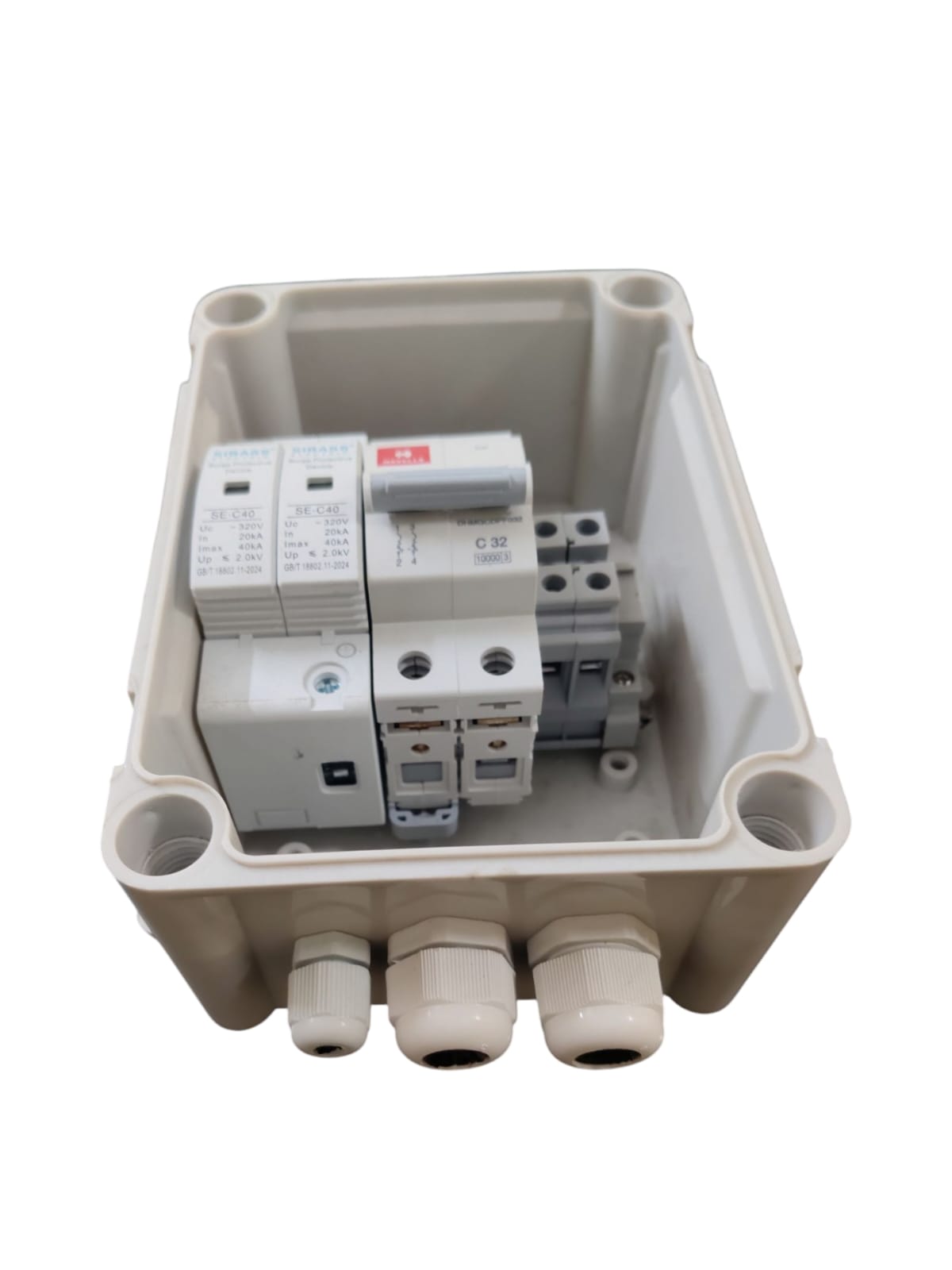

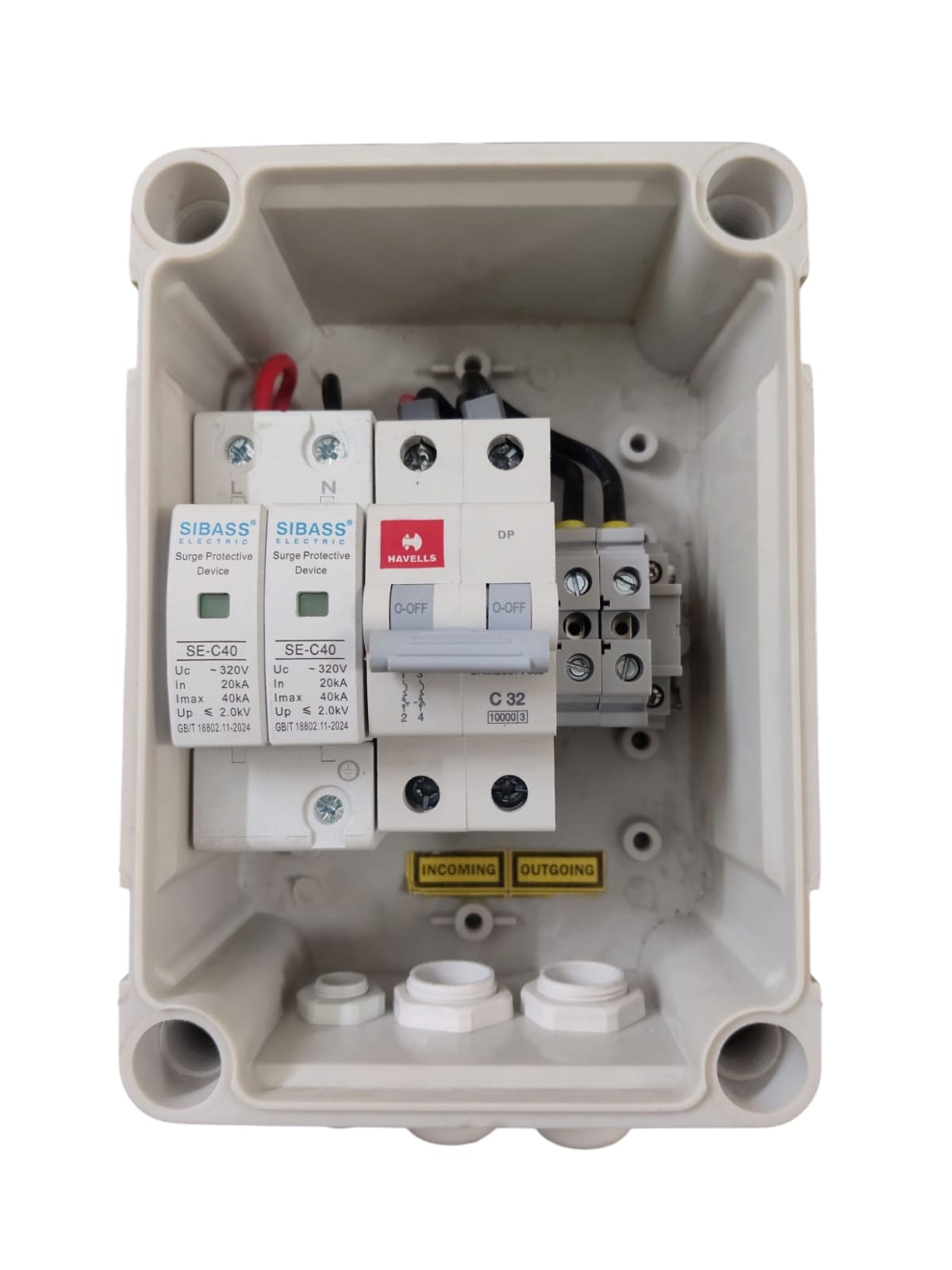

Product Overview
The Single Phase Solar AC-DB is a critical safety and protection unit installed in Solar PV systems. It is placed between the Solar Inverter and the home’s main switchboard (or the Grid/Net Meter).
Its primary function is to receive the converted AC power from the inverter and direct it to the load, while providing vital protection against electrical surges, short circuits, and overloads. It also serves as a manual isolation point for maintenance.
Key Features
-
Surge Protection: Equipped with an AC Surge Protection Device (SPD) to protect the expensive solar inverter from high-voltage spikes coming from the grid (e.g., lightning strikes nearby or grid fluctuations).
-
Overload & Short Circuit Protection: Contains a Miniature Circuit Breaker (MCB) that trips if the current exceeds safe limits, preventing fire hazards and equipment damage.
-
Weatherproof Enclosure: Typically housed in an IP65 polycarbonate box, making it suitable for outdoor installation alongside the inverter.
-
Transparent Cover: Allows for quick visual inspection of the breaker status (On/Off) and the SPD health indicator (usually Green for OK, Red for Replace).
-
Easy Termination: Includes DIN-rail mounted components and terminal blocks for secure and tidy cable connections.
